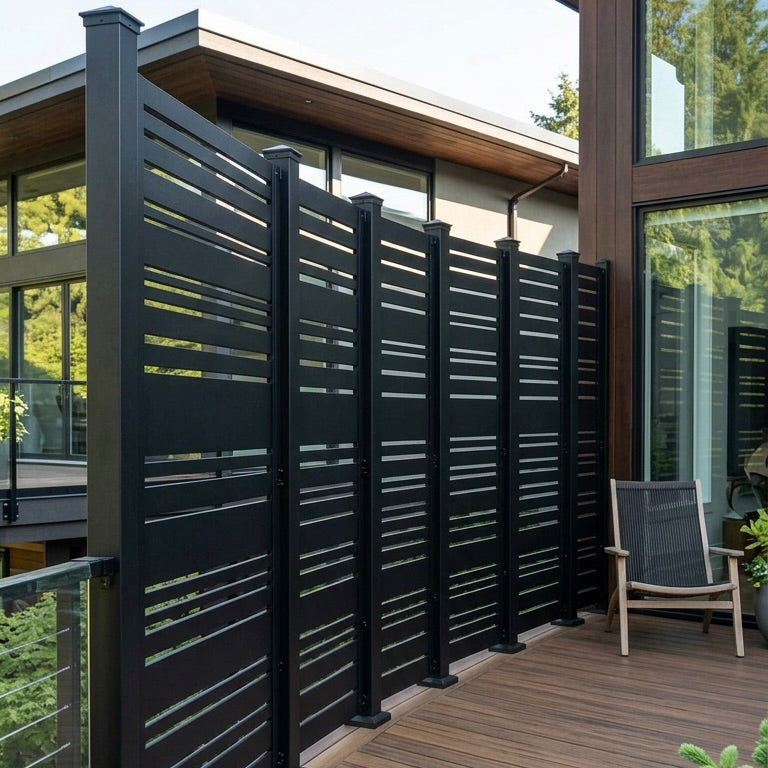

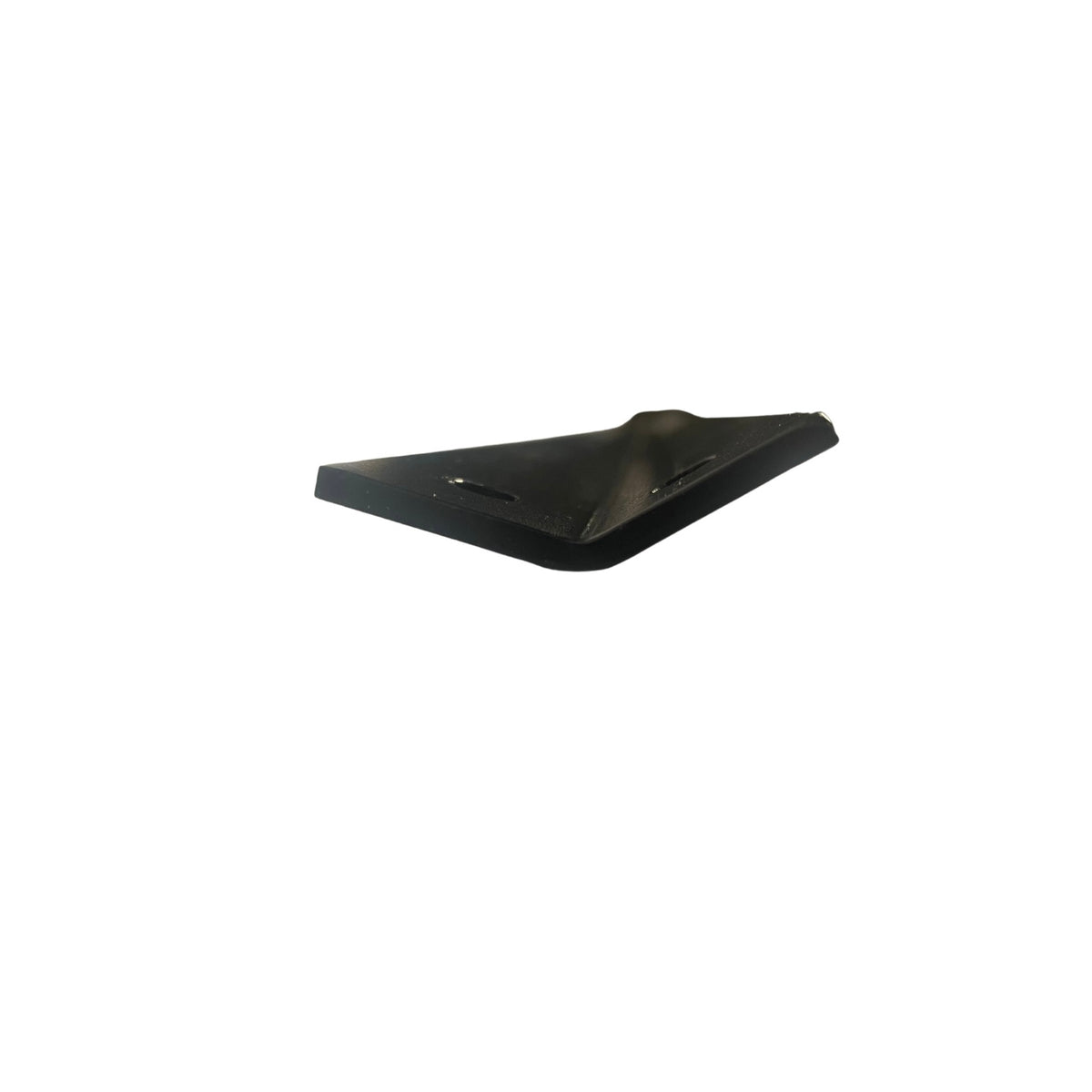

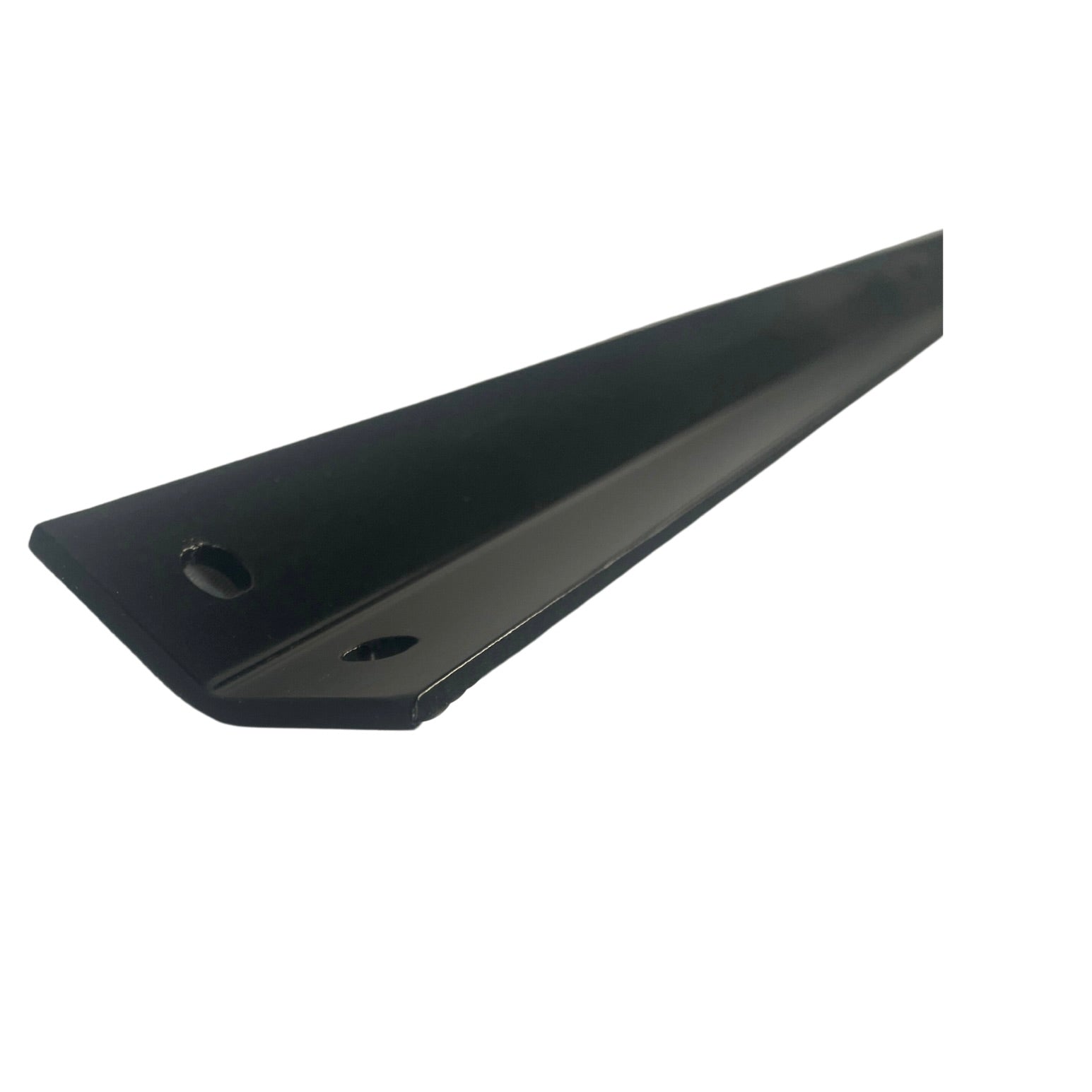

The Sunbelly Standard Screen Mounting 135° Bracket is an optional accessory that allows screens to be installed not in a straight orientation. Perfect for decks, patios, and landscape designs where a 90° corner feels too sharp, these brackets help achieve a more architectural, custom look while maintaining the strength and simplicity of the Sunbelly system.

This bracket is sold as an individual piece and is made of durable aluminum to fit the Standard Size Sunbelly Screen Posts. The Sunbelly Standard Screen Mounting 135° Bracket is available in the color Black. The Mounting 135° Bracket can be painted (if desired) to match the color of your posts. Brackets can be cut down to become compatible with Sunbelly Shorty Screens.

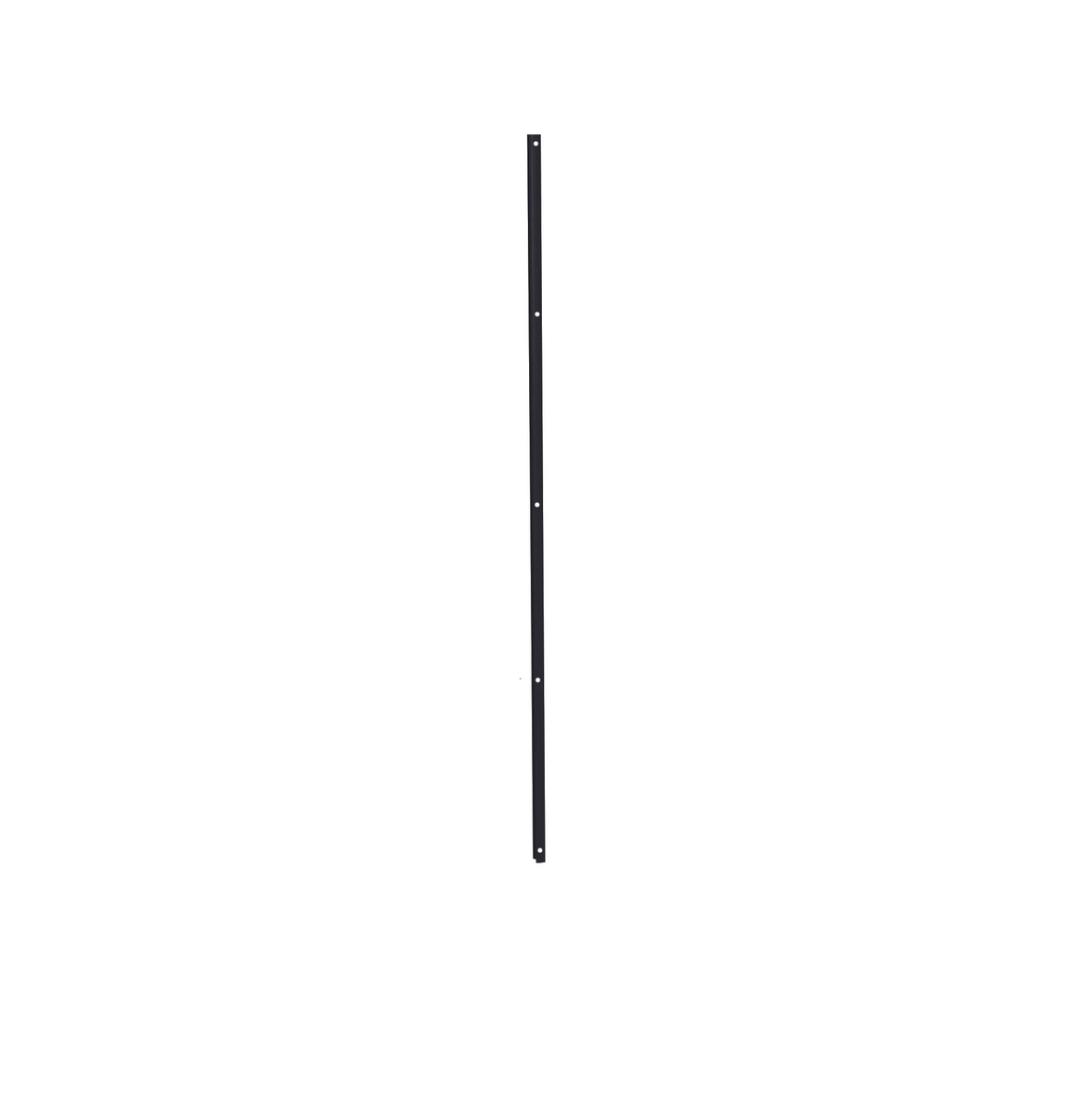

1” x 1" x 68” high (2.5 mm aluminum)

Available Color: Black

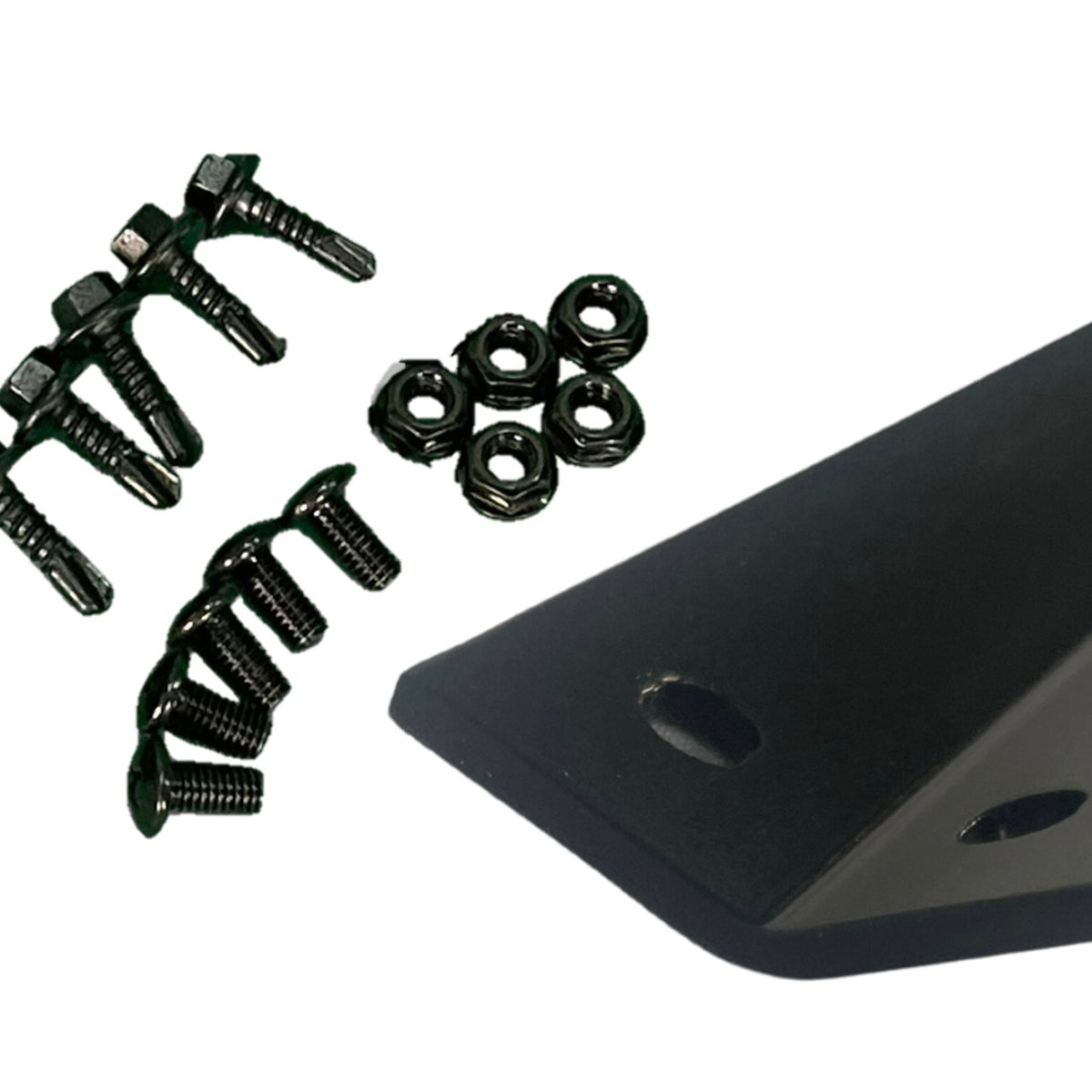

Package Includes:

• (1) 135° aluminum bracket
• (6) self-tapping screws for attaching screen to posts
• (6) screws & bolts for mounting privacy screen

Standard Post (72")

• Comes with both a skirt and a cap
• Dimensions: 3” Square x 72” H (2.5 mm aluminum)
• Post base with skirt is 5.4" square
• Black, Dark Bronze, or White

Standard Mounting L-Brackets (68")

• 1.18” square x 68” high (3 mm aluminum)
• Sold as a package of 2 brackets. Package includes 2 brackets, 10 self-tapping screws for attaching to posts & 10 screws & bolts for mounting privacy screen.
• Black, Dark Bronze, or White

In-Ground Post (108")

• Used for in-ground installation
• Comes with both a skirt and a cap
• Dimensions: 3” Square x 108” H (2.5 mm aluminum)
• Black or Dark Bronze

Standard Flat Bracket (68")

• Sold individually
• 1” square x 68” high (2.5 mm aluminum)
• Black, Dark Bronze or White

Spacers

• Sold in packs of 10
• Available in 1", 2", 3", and 4" widths in powder-coated aluminum. Sunbelly
• Black or Dark Bronze

Post Screw Set (Wood/Composite)

• Set of 4 screws
• Dimensions per screw: 5/16” W x 3.5” L

Post Screw Set (Concrete)

• Set of 4 screws
• Dimensions per screw: 19/64” W x 3.5” L
